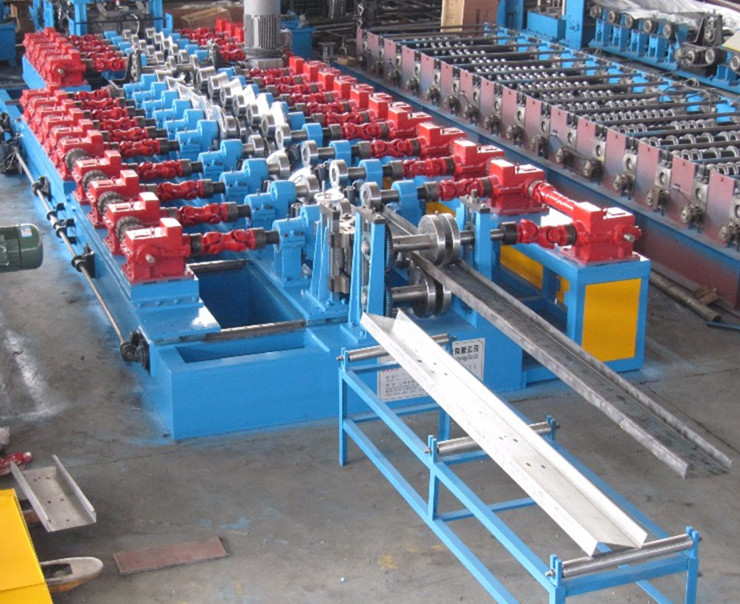

High Efficiency Auto Profile C Purlin Roll Forming Machine 8-12 M / Min
Specifications:
| Roller steps | 12 |
| Dimension | 9500*1100*1150mm |
| Weight | 3.5t |
| Feeding width | 64mm |
| Forming thickness | 1-1.5mm |
| Large frame | 300mm H-Beam |
| Diameter of roller | Φ50mm |
| Middle plate | 16mm |
| Chain Size | 1 inch |
| Voltage | 380V 50HZ 3 phases or customized |
| Motor power | 4kw |
| Pump station power | 3kw/(7.5kw hydraulic motor) |
| Transducer power | 3.5kw |
| Cutting system | Hydraulic cutting(avoiding noise and smooth cut) |
| Material of cutting | Cr12 |
| Control system | PLC brand :Panasonic |
| Length error : ±2mm |
| Production capacity | 25m/min |
| Warranty | 1 year and we provide technical support for whole life, and overseas service |
| Maintain | Easily :Timely adding oil |
| Payment terms | 30% in advance, the balance before delivery |
| Package | Standard package |
| Delivery | 35 days after receiving the deposit |
Introduction
Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturing & exporting company engaged in the field of steel structure, whose products are 100% for export, and are well sold in America, Europe, Australia, Africa, Middle East and Southeast Asia, etc.
Hangzhou Willing International Co., Ltd owns two factories, one mainly develops and produces steel roll forming machines and another mainly produces the material for steel structure.
The main business scope covers following items:
1) Steel Roll Forming Machinery, Folding Machine, Shearing Machine and as well as its supplementary equipment. (Manufacturing)
2) Roofing Tile Sheet, Corrugated Steel Sheet, Decking Sheet, Sandwich Panels, Purlins and H Beam, etc. (Manufacturing)
3) Centrifuge decanters and supplementary equipment.
4) Galvanized Steel Coils, Pre-painted Steel Coils. (Trading)
5) Construction materials i. e.: Clips & brackets, bolts & screws, socket box.
In China, Willing International plays an important role in the export of steel structure products from raw material, to machine design, manufacturing and installation.
Insisting on the principles of "Nothing is impossible to your willing heart" and "Faithful cooperation, professional service", we have already established favorable relationships with many clients around the world.
Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit.
Installation and training:
a. If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer's workers/technicians on live.
b. No visit, we will send you instruction manual and videos to teach you how to install and operate.
c. If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.
