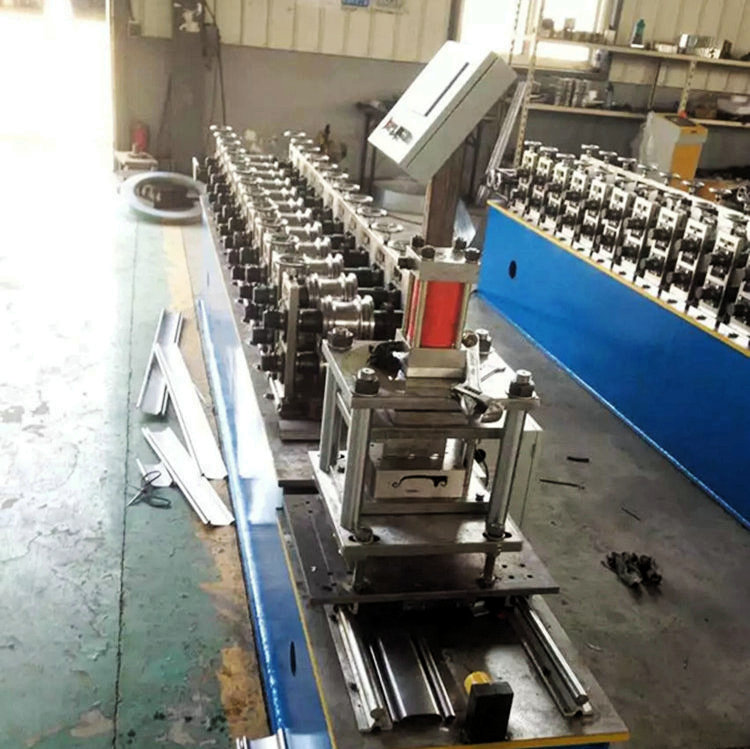

Durable Shutter Door Forming Machine 0 - 15 M / Min Adjustable Working Speed

  • 1
  • 2

Model Number : shutter door

Certification : CE

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20 sets per month

Delivery Time : Shipped in 30 days after payment

Packaging Details : 1.Main body is nude 2. PLC, pump, shafts are covered with plastic film 3. Spare parts in carton box 4. Packed according to customer's request

Dimension(L*W*H) : 6500*800*1200

Weight : 3 ton

Driving Motor : 5.5kw

Production Capacity : 15-20m/min

Raw Material thickness : 0.3-0.6mm

Roller material : Cr12 Steel Quenched

Shaft material : High grade 45# steel,forged and quenched

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

Roller shutter roll forming machine garage doors panels 8-15M/Min

Product Description

3T Manual decoiler
Coil weight (Max)
3000kg
Inter diameter
420mm-510mm
Maximal out diameter
1300mm
Oil cylinder dia
100mm
Coil width (Max.)
500mm
Working speed
0-15m/min adjustable
Hydraulic power
3kw
Main motor power
4KW AC motor
Frequency converter brand
Yaskawa
Feeding
Profile steel thickness between 0.8mm and 1.5mm
Feeding system adjustable by hand wheel
Feeding width range 150-300mm
Feeding roller diameter is ￠56mm, material is ASTM52100, HRC58-62egeree
rectify device
Function for revise the end product up and down/ left and right to straightness
Roller material Roller material: GCR15 quenched 58°-62°finishing turning CNC
Post cutting system
Cutting after forming Cut the sheet after roll forming to required length
Material of blade Cr12, 58-62 HRC hardness
Cutting power by hydraulic 7.5KW with Storage tank
Working pressure 12Mpa adjustable
Length measuring Automatic encoder length measuring
Working pressure 10-20Mpa adjustable
Tolerance of length 3000mm+/- 1.5mm
out-table
Size 2.0m long*0.3mwide*0.9mhigh
Supporter roller ASTM 1045 with chrome
Diameter of rollers 55mm
Quantity 2 units
Hydraulic station
Hydraulic power 7.5kw
Working pressure 12-20Mp adjustable
Solenoid valve 6 groups (one for cutting)
Hydraulic oil 46# hydraulic oil
Quantity 1
Control desk
Operating system language English and Chinese
Voltage, Frequency, Phase 380 V, 50 Hz, 3Phase
Control panel Button-type switch and touch screen
Unit of length millimeter (switched on the control panel)
PLC brand Panasonic
Frequency converter brand Yaskawa
Touch screen Taiwan Weinview

Durable Shutter Door Forming Machine 0 - 15 M / Min Adjustable Working Speed

Our machines have been exported to many regions and win high requtation because of the high quality and reasonable price.

Warmly welcome to visit our factory!

any question call me free!
